304 Thin Wall Stainless Steel Tube OD 10.00mm ID 8.60mm WT 0.70mm

Author: Healsmed Category: Capillary Tube Date: 2026-05-16 05:00 Views: 123

304 stainless steel tube, nominal 10.00 mm OD and 0.70 mm wall

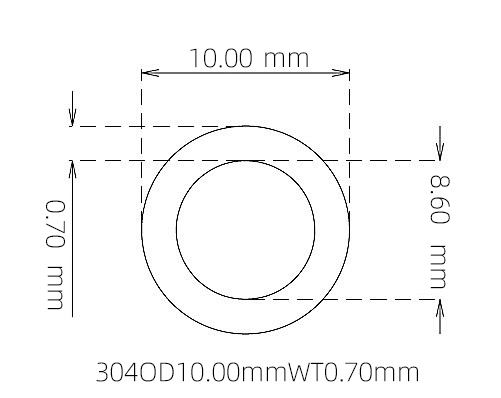

304 Stainless Steel Tube: 10.00 mm OD × 8.60 mm ID × 0.70 mm Wall

This listing identifies a nominal 304 stainless steel tube configuration for an engineering enquiry. The three dimensions are mathematically consistent: (10.00 mm OD − 8.60 mm ID) ÷ 2 = 0.70 mm nominal wall. They are not an approved tolerance, stock commitment or acceptance specification. Send a controlled drawing so the supplier can confirm manufacturability, inspection and the documentation available for your order.

Dimensions to Confirm in the RFQ

Item	Nominal value or request	Buyer decision
Material	304 stainless steel, subject to the agreed material specification	State the grade, product standard and certificate requirements on the drawing or purchase order.
Outer diameter	10.00 mm nominal	Specify tolerance, measurement method and inspection locations.
Inner diameter	8.60 mm nominal	Specify whether ID is controlled directly and how it will be measured.
Wall thickness	0.70 mm nominal, calculated from OD and ID	Identify whether wall is a controlled characteristic or a reference dimension.
Cut length and ends	To be defined by the buyer	Provide length tolerance, cut method, burr or chamfer criteria and both-end requirements.
Surface and cleaning	To be defined by the buyer	State the required finish, cleanliness criteria and evidence before quotation.

Inspection and Documentation

Agree the acceptance method before production. An OD reading alone does not verify ID, wall thickness, end condition or cleanliness. Ask which characteristics will be measured, where readings will be taken, what sampling plan applies and which results will be supplied with the shipment. If you need a material certificate, first article report, lot traceability or certificate of conformance, identify the required format and timing in the RFQ.

Application suitability, including any medical device use, depends on the buyer’s design, processing, validation and applicable quality requirements. This page does not claim biocompatibility, sterility, clinical performance, a certified production process or a fixed achievable tolerance for this size.

Questions Before Quotation

Which drawing revision and material specification govern the order?
Are OD and ID independently controlled, or is wall thickness the second controlled dimension?
What cut length, end condition, surface finish and packaging are required?
Which inspection methods, lot identifiers and delivery records are needed?
What sample quantity and production quantity should be quoted separately?

Use the medical tubing RFQ checklist to assemble the requirements, then send Healsmed your drawing and documentation request for a feasibility review. You can also browse the stainless steel tubing product information.
